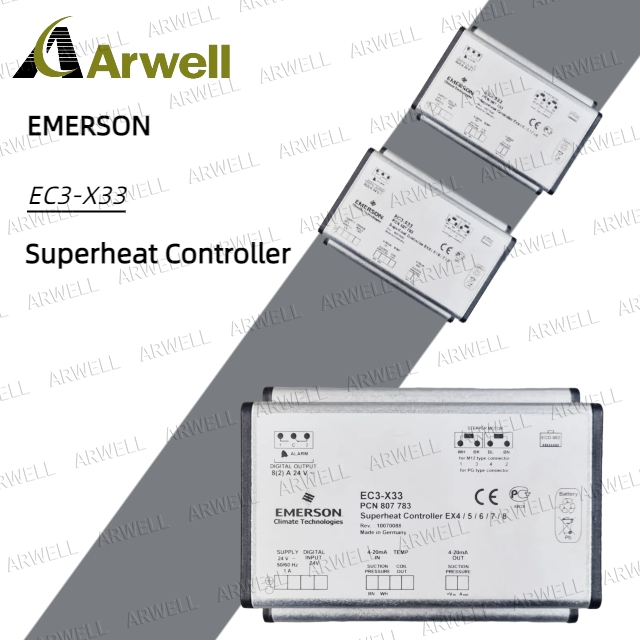

Emerson EC3-X33 Superheat Controller: Precision and Stability for Your Refrigeration Systems

2025-04-11

In the world of refrigeration, air conditioning, and industrial cooling, maintaining optimal superheat is crucial for system efficiency, compressor protection, and overall reliability. The Emerson EC3-X33 Superheat Controller is a standalone universal solution designed to provide precise and stable superheat control, working in conjunction with stepper motor-driven electronic control valves.

Understanding Superheat Control

Superheat refers to the temperature of the refrigerant vapor above its saturation temperature at a given pressure. Accurate superheat control ensures that:

· The compressor is protected: By preventing liquid refrigerant from returning to the compressor, which can cause damage.

· The evaporator is fully utilized: Maximizing heat transfer and system efficiency.

· The system operates stably: Avoiding unwanted fluctuations and ensuring consistent performance.

The Emerson EC3-X33: A Dedicated Solution

The Emerson EC3-X33 is a dedicated controller engineered to manage superheat effectively in a wide range of applications, including:

· Air Conditioning Systems: Chillers, rooftops, package units, close controls.

· Refrigeration Systems: Cold rooms, display cases, transportation refrigeration.

· Industrial Applications: Industrial process cooling, heat pumps.

Key Features and Benefits:

· Precise Superheat Control: The EC3-X33 utilizes advanced algorithms to maintain the desired superheat level accurately, leading to improved system performance and efficiency.

· Compatibility with Stepper Motor Valves: Specifically designed to work seamlessly with Emerson EX series stepper motor-driven electronic control valves (EX4-EX8), offering precise flow control.

· Evaporating Pressure Limitation (MOP): Features a Maximum Operating Pressure (MOP) function to protect the compressor from excessive pressure.

· Comprehensive Alarm System: Includes alarms for low and high superheat, as well as monitoring of sensors and wiring to detect and alert users to potential issues.

· Intelligent Alarm Management: Designed with intelligent alarm handling to protect the compressor and ensure fail-safe operation.

· Battery Backup: Integrates a rechargeable battery to ensure the electronic control valve can be closed safely in the event of a power loss, preventing potential damage.

· User-Friendly Setup (with ECD-002): While the EC3-X33 can operate independently, it requires the optional ECD-002 display keypad unit for initial setup and parameter configuration.

· Analog Output Signal: Provides a 4-20 mA analog output signal for integration with other control systems.

· Shut-Off Function: Offers a shut-off function for further integration and control possibilities.

· Robust Design: Built to withstand typical operating conditions within its specified temperature and humidity ranges.

Why Choose the Emerson EC3-X33?

The Emerson EC3-X33 offers a reliable and dedicated solution for precise superheat control. Its comprehensive features, compatibility with Emerson electronic expansion valves, and intelligent protection mechanisms make it a valuable component for optimizing the performance and lifespan of your refrigeration and air conditioning systems. By ensuring stable superheat, the EC3-X33 contributes to energy efficiency, reduced downtime, and enhanced system reliability.
